| Model | Interface | Product Specification |
| D-SG-W6-FA | ⅜”Flared | Pure Water Spray Gun Only |
| D-SG-W4-FA | ¼”Flared | Pure Water Spray Gun Only |
| D-SG-W4PN-FA | ¼”FNPT | Pure Water Spray Gun Only |
| 04-10-015-0067 | ⅜” | PFA Coiled Hose (3m) |
| 04-10-015-0068 | ⅜” | PFA Coiled Hose with Return Line (3m) |
| 04-10-015-0069 | ¼” | PFA Coiled Hose (3m) |
Spring Tube

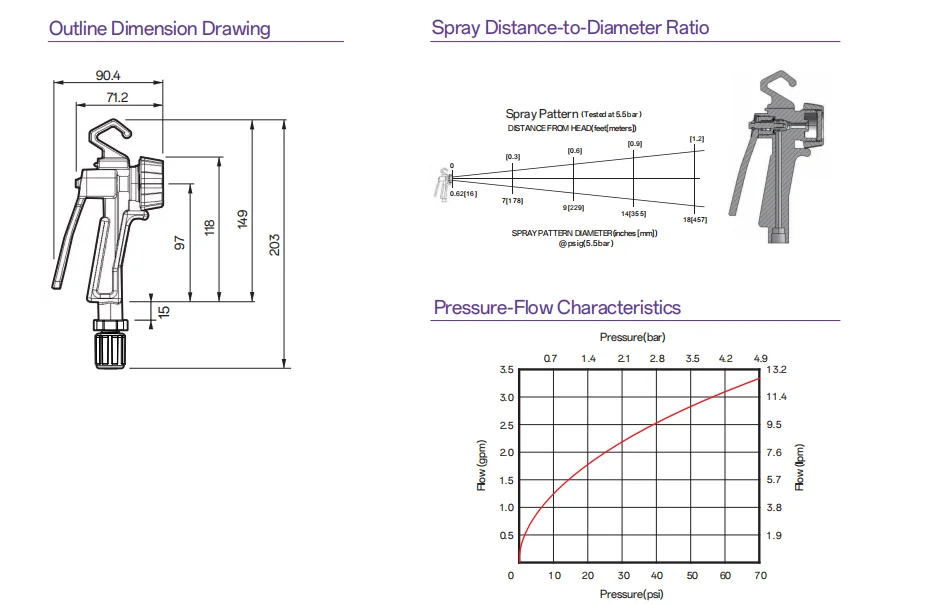

Specification
- Wetted Parts Material: High-purity PFA, modified PTFE
- Non-wetted Parts: PFA, PVDF, stainless steel spring
- Operating Pressure Range: 0 to 5 bar
- Operating Pressure: Ambient Temperature Range: -3°C to 66°C Fluid Temperature Range: -3°C to 93°C
