Features
- It features 360-degree adjustable nozzle direction for flexible spraying angle changes, making it particularly suitable for complex installations requiring special angles.
- With chemical resistance and corrosion resistance.
- Material: PVDF

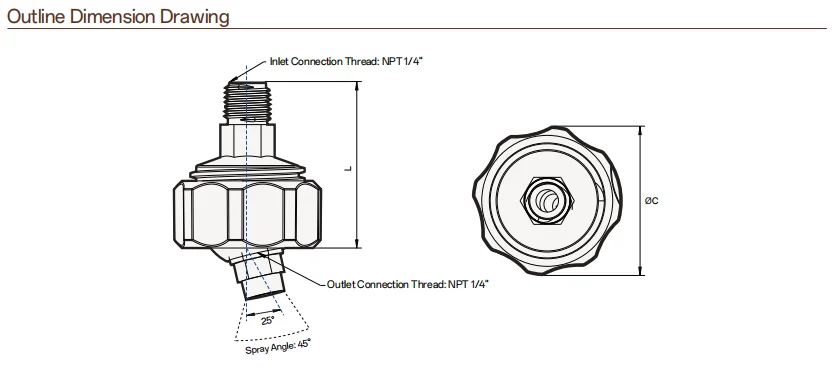

| Model | Inlet connection
thread |
Outlet connection
thread |
Overall dimensions
(L) |
Overall dimensions
(ØC) |
Nozzle
rotation angle |
Spray range |
| D-WXQ30-4N-DF | NPT ¼” | NPT ¼” | 51 | 44 | 25° | 45° |
