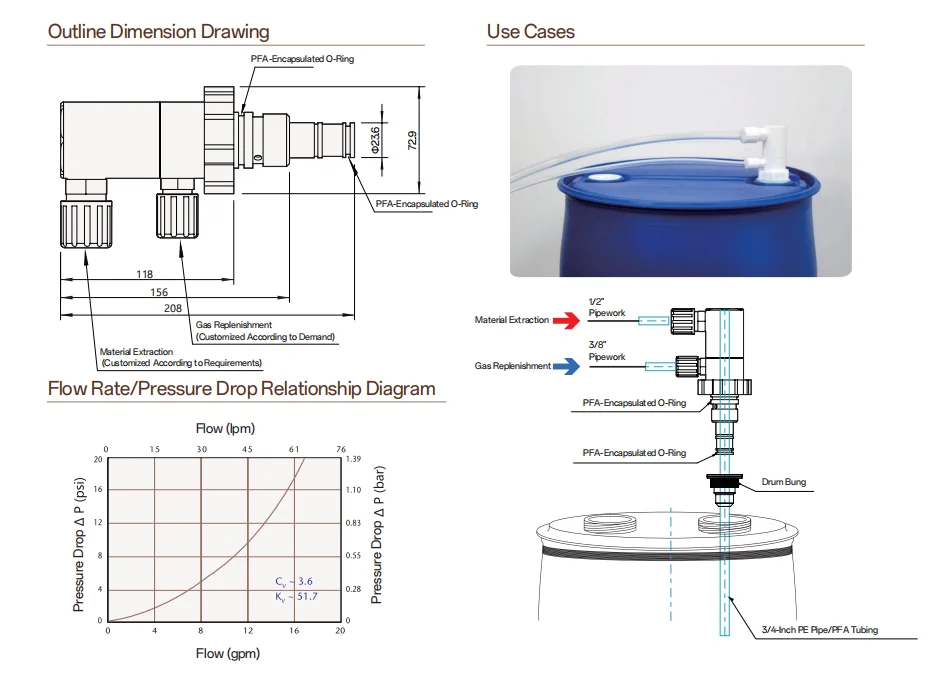

| Item | Type F Check Valve Liquid Extraction Coupling |
| Working Pressure bar | 0.7~3.4 |
| Maximum Temperature ℃ | -18~200 |
| Material | PTFE、PFA |
| Liquid End Connection | ¼” ,⅜” , ½” ,¾” ,1″ |
| Gas End Connection | ¼” ,⅜” , ½” ,¾” ,1″ |
| Connection Type | Thread、Flared、 Sleeve Type |
| Drum Plug Thread | Custom-dimensioned Interface |
Features
- With a check valve function, it ensures high safety during use, minimizing chemical exposure and contamination, and features a low opening pressure (0.006 MPa).
- All components are made of PTFE material, offering excellent chemical resistance to meet the requirements of various chemicals and liquid containers.
- The dip tube bung is available in multiple thread specifications to adapt to different liquid drums.
