Specification
| Item | |

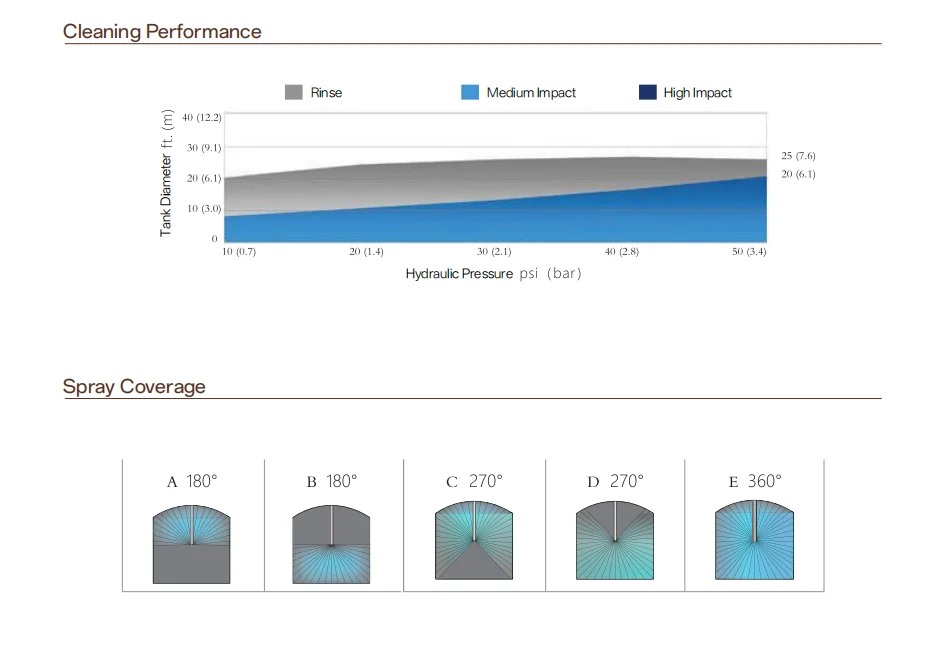

| Maximum Tank Diameter | 15~20ft.(4.3~6.0m) |
| Working Principle | Fluid-Driven Reaction Force |
| Flow Rate | 9.0 ~224 gpm(34 ~ 850 lpm) |
| Working Pressure | 10.0 ~ 50 psi (0.7 ~ 3.4 bar) |
| Maximum Temperature | 200°F (93°C) |
| Material | PTFE |
| Inlet Connection | ⅛” ,½ ” ,¾” ,1″ |
Features
- Driven by the fow of cleaning fuid, the rotating nozzle delivers efective washing and rinsing.
- With an adjustable spray angle ranging from 180° to 360°, it can target specifc areas or cover the entire inner cavity.
- Constructed from PTFE (polytetrafuoroethylene) for excellent chemical resistance, it achieves optimal perormance when used with pressurized liquid, generating stronger impact compared to static spray balls.

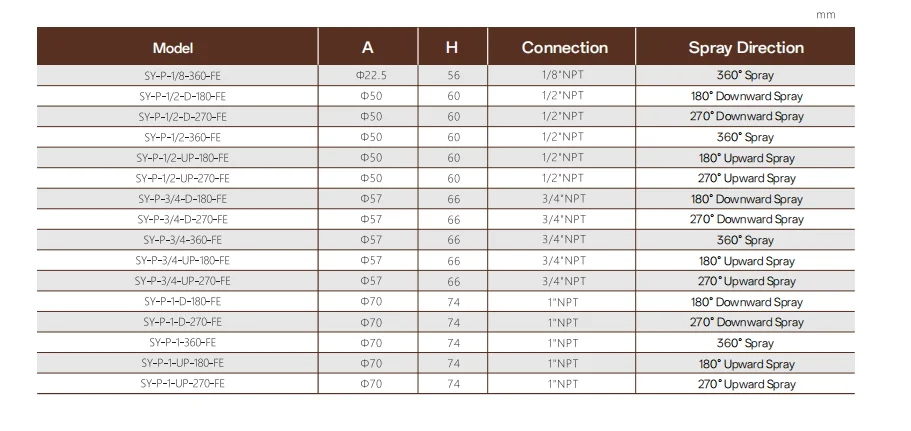

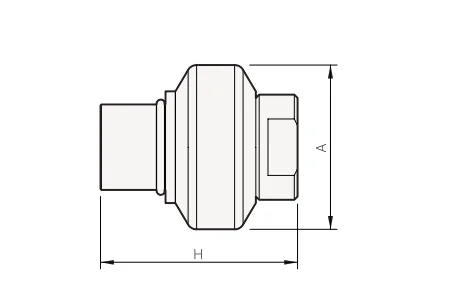

Outline Dimension Drawing
