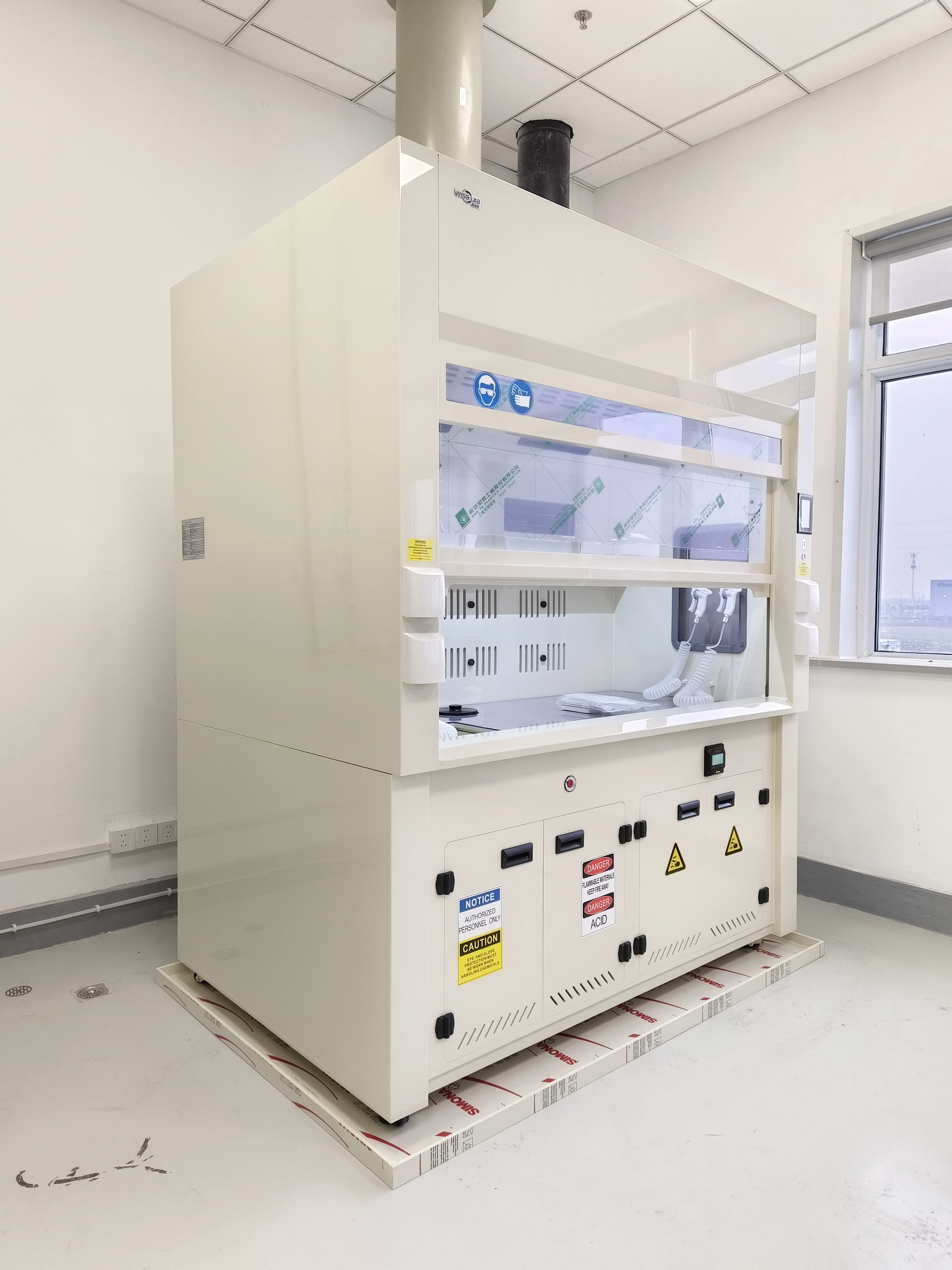

| 1. PVC anti-static fume hood, made of FM4910 fire-resistant PVC board, with anti-static treatment for the tabletop, and a surface resistivity of 10 ^ 5 to 10 ^ 9 ohms
2. sliding doors: Adopting a top and bottom balanced sliding door, the window is made of 6T transparent PVC acid resistant board, ensuring that the sliding door can slide up and down freely or be fixed in any position.. 3. Activity drip working surface: Made of FI4910 fireproof PVC board (thickness 10mm, load-bearing capacity above 80kg), the surface of the board is designed with surface openings (hole diameter 8mm, hole spacing 50mm), which can be opened at any time for easy inspection and bottom maintenance. There is a leak proof inner groove under the board surface, which adopts an inclined design to facilitate the discharge of liquid droplets and PVC pipes.. 4. Sink: A sink (length, width, height) W300 xD250 xh100 is installed on the right side of the workbench, and a 20mm diameter Drain tube is set in the middle of the sink. The Drain tube has a pneumatic switch that can be turned on and off at any time to release water, and two gooseneck faucets are added above. This sink can hold DIW and strong acids and alkalis, ensuring that the joint at the bottom of the sink is not corroded. 5. Dain tubes: capable of withstanding strong acids and alkalis. ” 6. PVDF or PFA Gooseneck Faucet: A 3/8-NPT pipe diameter is used directly above one sink, and the pipeline is made of PFA material. |
![]() |
GUN: On the left side of the front, there is one DIW GUN3/8 and one 1/4 N2 GUN.
Lighting: Install a set of fluorescent lamps on the top to ensure an illumination of over 700Lux
| Product Name: PVC anti-static spray washing fume hood | ||||
| Model | WL-OP90PVC-PRO | WL-OP120PVC-PRO | WL-OP150PVC-PRO | WL-OP180PVC-PRO |
| Serial number | 1563-023-00X | |||
| External dimensions | (W)900*
(D)1050* (H)2275mm |
(W)1200*
(D)1050* (H)2275mm |
(W)1500*
(D)1050* (H)2275mm |
(W)1800*
(D)1050* (H)2275mm |
| Operation Space | (W)770*
(D)500* (H)900mm |
(W)1070*
(D)500* (H)900mm |
(W)1270*
(D)500* (H)900mm |
(W)1570*
(D)500* (H)900mm |
| Material | PVC anti-static | |||
| Noise | <60dBA | |||
| Control system | 4.3-inch/7-inch LCD screen | |||
| Lighting | Economical LED light/
800 LUX |
|||
| Voltage | 110/220V ,50/60HZ | |||
| Spray system | Dual spray | |||
| Ph value | PH value display/
with 485 communication protocol |
|||
| Automatic dosing | Automatic dosing system/
optional |
|||
| Waste liquid recovery device | Waste liquid recovery device/
optional |
|||
| Electric air valve | φ160mm/φ250mm/φ315mm | |||
| Manufacturer | KSXRW.CO.,LTD | |||
| Country of manufacture | MADE IN CHINA | |||
