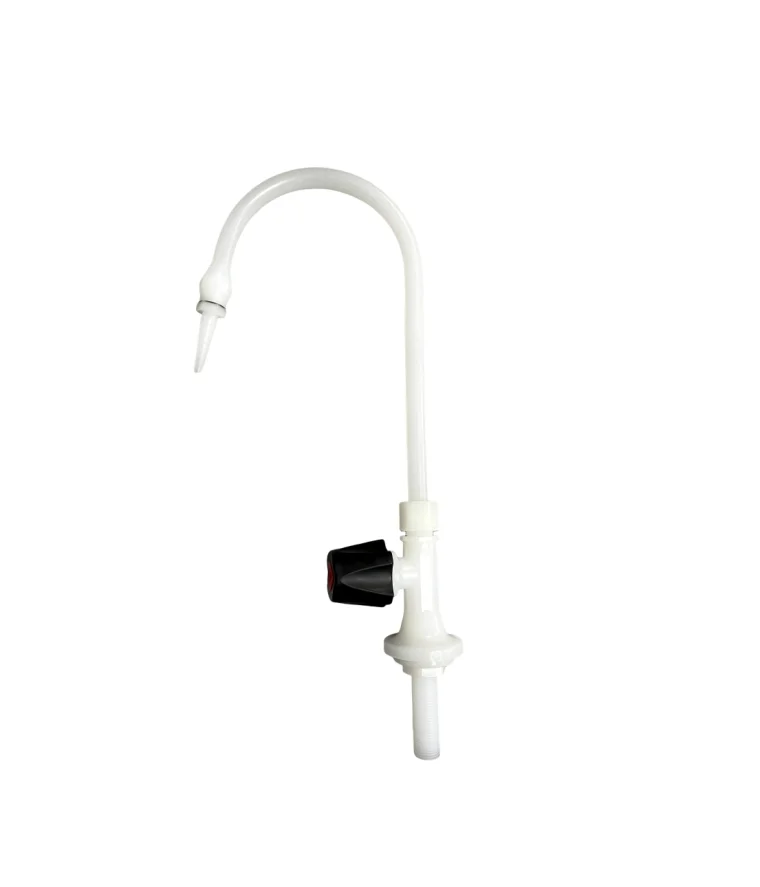

1. Water nozzle 2. Inner wire of water nozzle 3. Bent water pipe 4. Fixed components for bent water pipes 5. Faucet valve body 6. Faucet handle 7. Valve core locking nut 8. Valve core rod 9. Valve core guide sleeve 10. Valve core seal 1 11. Valve core seal 2 12. Valve bottom connection thread G1-2 13. Valve bottom fixing nut G1-2

Polyvinylidene fluoride (PVDF) has various advantageous properties and is suitable for use in semiconductor equipment:

1. Chemical resistance: PVDF has strong resistance to various chemicals, including acids, bases, and organic solvents. This characteristic is crucial in semiconductor manufacturing as it frequently comes into contact with various chemicals during cleaning and processing steps.

2. High purity: PVDF has extremely low extractable ion and metal content, making it suitable for use in environments where material contamination can reduce semiconductor performance. High purity is crucial for maintaining the integrity of semiconductor processes and products.

3. Mechanical strength: PVDF is known for its excellent mechanical properties, including high tensile strength and toughness. This enables it to withstand the mechanical stress and pressure that may occur during the processing and operation of semiconductor equipment.

4. High temperature resistance: PVDF can work effectively over a wide temperature range, typically from -40 ℃ to 150 ℃ or higher, depending on the specific grade. This high temperature resistance is crucial for semiconductor equipment that uses both low-temperature cooling and high-temperature processes simultaneously.

5. Electrical insulation: PVDF is an excellent electrical insulator, which is crucial for semiconductor devices as they require precise control of electrical performance to prevent interference or damage to sensitive electronic components.

6. Compatibility with semiconductor manufacturing processes: PVDF is compatible with various semiconductor manufacturing processes, including etching, deposition, and cleaning steps. It can be used for equipment components such as pipelines, fittings, valves, and seals without reducing or contaminating semiconductor materials or processes.

7. UV resistance: PVDF has the ability to resist UV degradation, which extends its service life in applications that may be exposed to UV radiation.

8. Easy to process: PVDF is relatively easy to process and shape into complex shapes, allowing for customized design and precise engineering of components in semiconductor equipment.

Overall, these characteristics make PVDF the preferred material for semiconductor devices, as reliability, purity, chemical resistance, and compatibility with strict manufacturing processes are crucial.
