| Characteristic

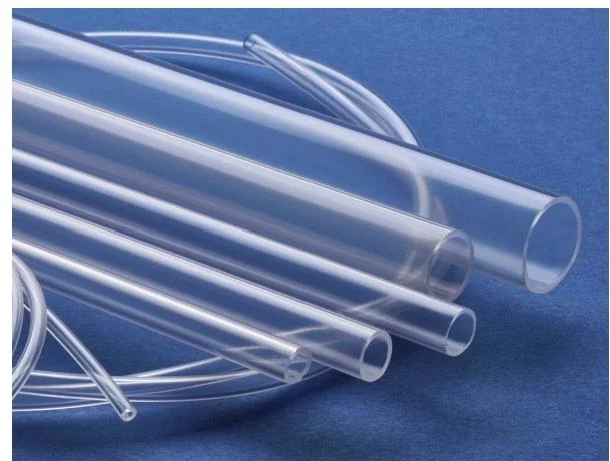

Excellent chemical resistance Temperature resistance of 260 ℃, high flexibility and bending resistance Low friction coefficient, good weather resistance, excellent anti adhesion for long-term outdoor use, and not easily adhered to the inner wall of the pipe High transparency makes it easy to observe the internal fluid condition. New PFA or Super PFA has high purity, Suitable for use with high-purity chemicals |
 |
Purpose
Semiconductor Industry/Chemical and Pharmaceutical Industry
Food industry/pharmaceutical instruments/heat exchangers/liquid level gauges
Raw Materials
Ultra pure AP-231SH, 451HP or other similar raw materials
AP-230SH, 450HP or other similar raw materials, can be ordered
| NO. | ProductNumbers
Product specifications |
InsideO OutsideO
Inner diameter (mm) Outer diameter (mm) |
ThicknessTolerance | Working
Pressure Use pressure (bar) |
Bursting
Pressure burst pressure (bar) |
BendingRadius
bending radius (mm) |
||
| Thickness(mm)Tolerance (mm) | ||||||||
| 1 | PFA-TUBE-1/4″ | 3.95 | 6.35 | 1.20 |  |
19 | 79 | 20 |
| 2 | PFA-TUBE-3/8″ | 6.35 | 9.53 | 1.59 | ±0.1 | 16 | 67 | 30 |
| 3 | PFA-TUBE-l/2″ | 9.53 | 12.7 | 1.59 | |
12 | 46 | 60 |
| 4 | PFA-TUBE-3/4″ | 15.88 | 19.05 | 1.59 | ±0.1 | 8 | 28 | 160 |
| 5
6 |
PFA-TUBE-1″
PFA-TUBE-1-1/4″ |
22.22
28.05 |
25.4
31.8 |
1.59
1.95 |
±0.1
±0.1 |
7
6 |
20
18 |
290
370 |
| 7 | PFA-TUBE-1-1/2″ | 33.75 | 38.1 | 2.19 | |
5 | 16 | 460 |
| 8 | PFA-TUBE-2″ | 45.80 | 50.80 | 2.50 | ±0.1 | 4 | 12 | 680 |
