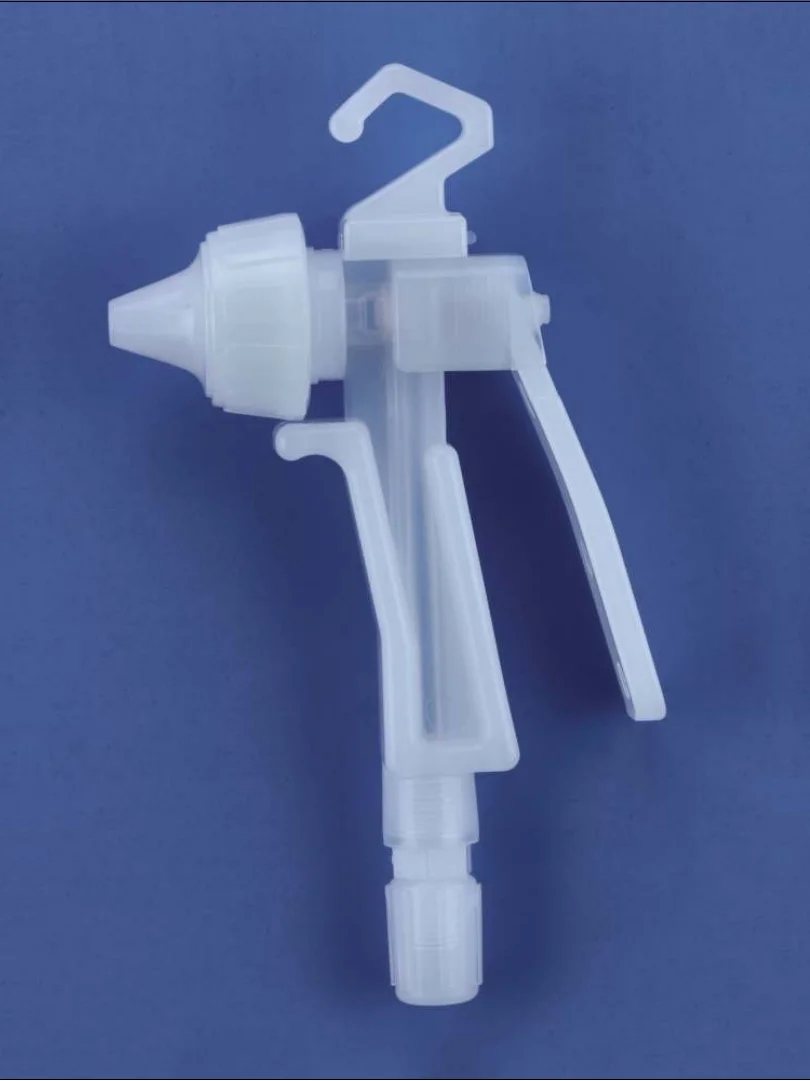

| The D-SG series PFA nitrogen gas gun is developed specifically for high-purity semiconductor applications. It is designed with an injection molded ultra clean PFA body, a precision machined sealing area, and a patented diaphragm and valve core. The action is smoth and flexible, with extremely low dead corners, providing reliable sealing performance and a long service life. The wet parts are made of PFA and modified PTFE, with no sealing ring design to ensure clean operation. Featuring a detachable hanger design that allows for suspension in any direction. You can choose between 1/4 “or 3/8” Dwarf interface. You can also choose coiled hoses with recirculation function. Other options include 0.22 or 0.45 micron filters and coiled hose assemblies. |  |
Main indicators of the product
Wet parts material: Ultra pure PFA, modified PTFE.
Other component materials: PFA, PVDF, stainless steel springs.
Pressure range: 0 to 5 5bar。
Temperature range for use: Environmental temperature: -17 ℃~66 ℃ Fluid temperature: -17 ℃~93 ℃
| Model | Interface | Product description |
| D-SG-N6-FA | 3/8 “expansion port | Nitrogen gun (including 0.45 μ m filter) |
| D-SG-N4-FA | 1/4 “expansion port | Nitrogen gun (including 0.45 μ m filter) |
| D-SG-N4PN-FA | 1/4″FNPT | Nitrogen gun (including 0.45 μ m filter) |
| 04-10-015-0067 | 3/8″ | PFA spring tube (3 meters) |
| 04-10-015-0069 | 1/4″ | PFA spring tube (3 meters) |
