| Model | Interface | Product Specification |
| D-SG-N6-FA | ⅜”Flared | Nitrogen Gun (with Filter) |
| D-SG-N4-FA | ¼”Flared | Nitrogen Gun (with Filter) |
| D-SG-N4PN-FA | ¼”FNPT | Nitrogen Gun (with Filter) |

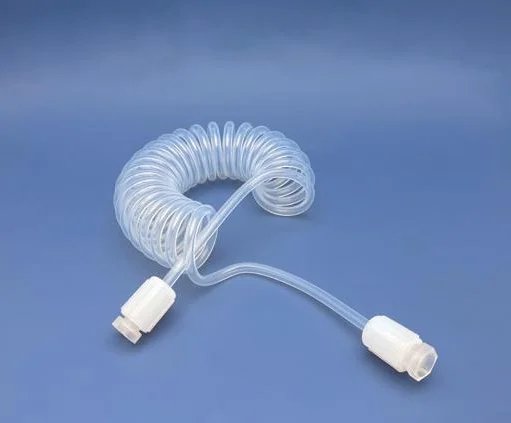

| 04-10-015-0067 | ⅜” | PFA Coiled Hose (3m) |
| 04-10-015-0069 | ¼” | PFA Coiled Hose (3m) |
Spring Tube
Specification
- Wetted Parts Material: High-purity PFA, modified PTFE
- Non-wetted Parts: PFA, PVDF, stainless steel spring
- Operating Pressure Range: 0 to 5 bar
- Operating Pressure: Ambient Temperature Range: -3°C to 66°C Fluid Temperature Range: -3°C to 93°C
