| 1. Anti acid and alkali fume hood, made of flame-retardant PP board, with anti-static treatment for the countertop, with a surface resistivity of 10 ^ 5-10 ^ 9 ohms
2. sliding doors: Adopting a top and bottom balanced sliding door, the window is made of 6T transparent PVC acid resistant board, ensuring that the sliding door can slide up and down freely or be fixed in any position.. 3. working faces: flame retardant PP board (thickness 10mm, load-bearing capacity of 80kg or more), reinforced treatment. 4. GUN: One DIW GUN3/8 and one 1/4 N2 GUN are installed on the left side of the front 5.5 PVDF faucet 6. VAV variable air volume control system. 7. Lighting: Install a set of fluorescent lamps on the top to ensure an illumination of over 700Lux |
 |

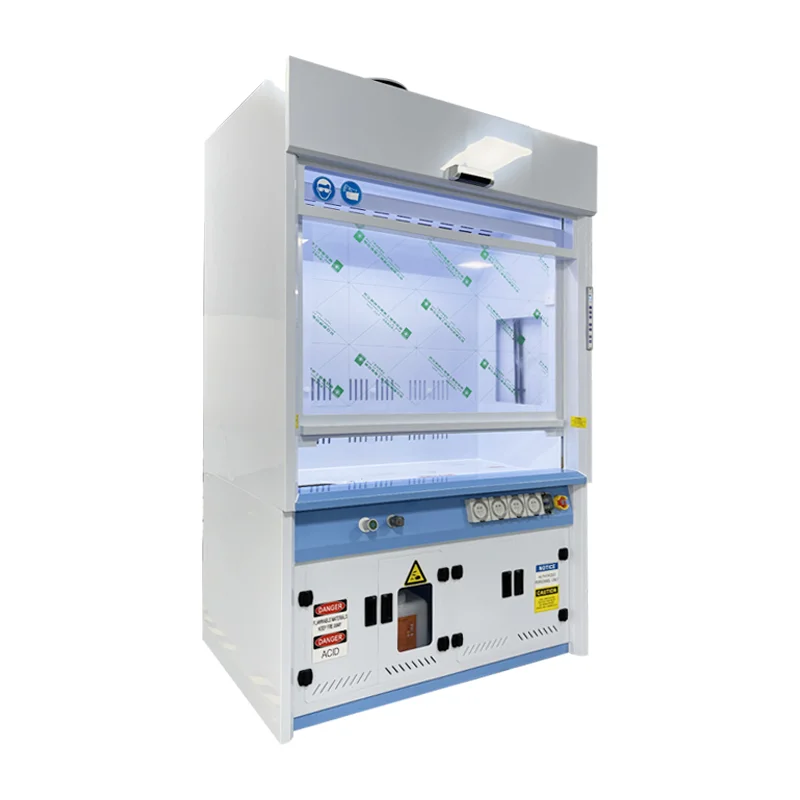

| Product Name: New Ventilation Hood | ||||
| Model | WL-N90PP-PRO | WL-N120PP-PRO | WL-N150PP-PRO | WL-N180PP-PRO |
| Serial number | 1563-024-00NX | |||
| External dimensions | (W)900*
(D)850* (H)2275mm |
(W)1200*
(D)850* (H)2275mm |
(W)1500*
(D)850* (H)2275mm |
(W)1800*
(D)850* (H)2275mm |
| Operation Space | (W)770*
(D)680* (H)900mm |
(W)1070*
(D)680* (H)900mm |
(W)1270*
(D)680* (H)900mm |
(W)1570*
(D)680* (H)900mm |
| Material | PP/PVC | |||
| Noise | ＜60dBA | |||
| Control system | Narrow edge strip controller/4.3-inch/7-inch LCD screen | |||
| Lighting | Economical LED light/800 LUX | |||
| Voltage | 110/220V ,50/60HZ | |||
| VAV | Variable Air Volume VAV Control System/Optional | |||
| valve | Water cock/air cock/compressed air/optional | |||
| Electrically operated gate | Fully automatic door control/optional | |||
| Electric air valve | φ160mm/φ250mm/φ315mm | |||
| Manufacturer | KSXRW.CO.，LTD | |||
| Country of manufacture | MADE IN CHINA | |||

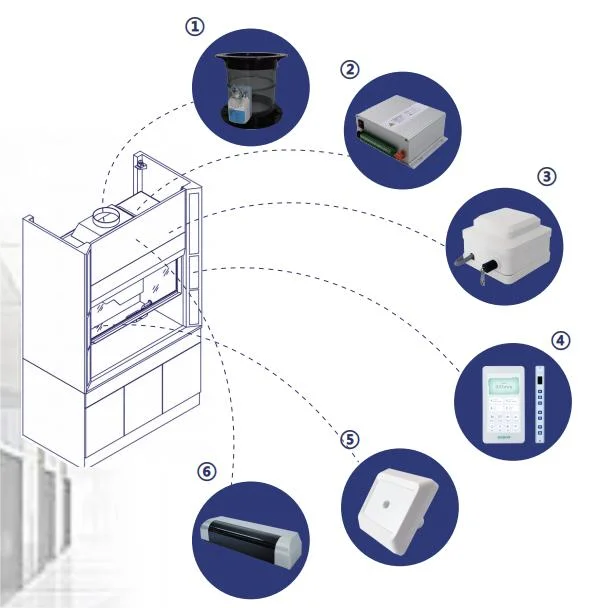

Performance Introduction: Dual state control is achieved through displacement sensors and surface wind speed detection to maintain a constant surface wind speed. The standard surface wind speed is set to 0.5m/s with people and 0.3m/s without people. The surface wind speed control is precise to the airflow control signal of ± 55, and the system response time is less than 1 second.
