Gas-Liquid Separation Liquid Extraction Coupling (for 200L Drum)

Add Your Heading Text Here

Features

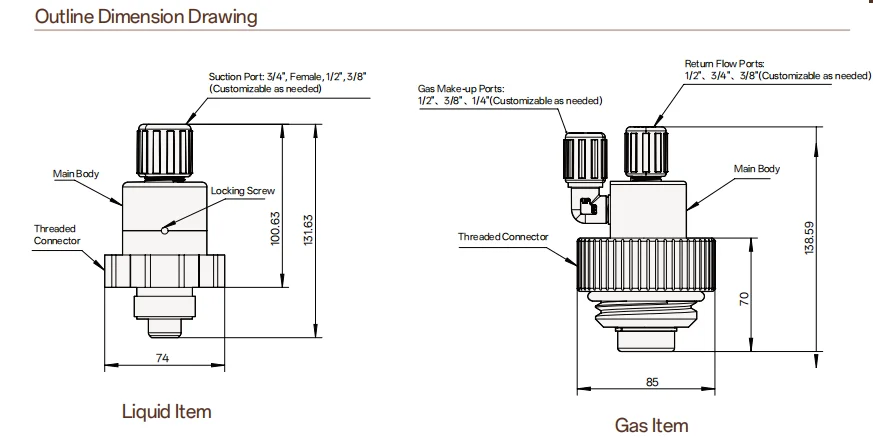

  • Liquid Item:

Made of imported PTFE material, the threaded connector allows for secure attachment without causing the main body to rotate. The fitting is equipped with an internal check valve to prevent residual liquid from leaking during

barrel replacement, ensuring safer and more reliable operation.

  • Gas Item:

Made of imported PTFE material, the threaded connector allows for secure attachment without causing the main body to rotate. The fitting does not

include a check valve.

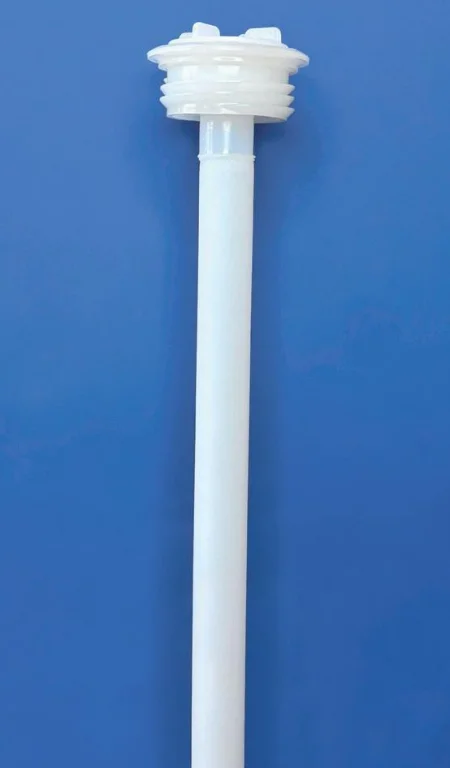

Suction Tube

Material: High-purity HDPE Dip Tube Length:

Customizable to reduce residual liquid at the bottom

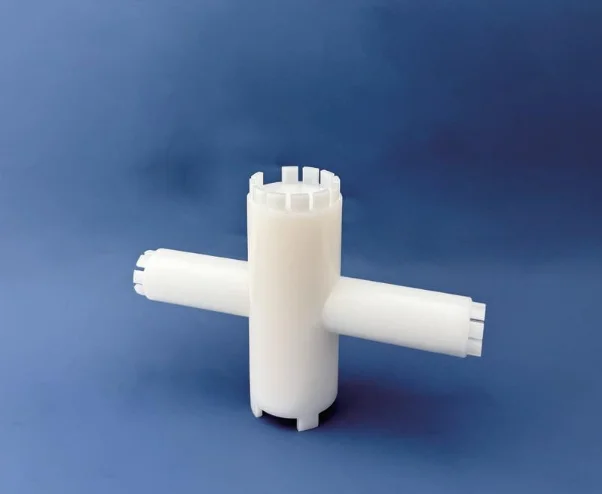

Drum Opener

  • Material: HDPE, reusable.
  • Multi-functional drum opener, with the upper part   serving as the inner plug end and the lower part as the drum plug end.

Plastic ventilation ducts:
