systems, safety liquid inlet systems, and centralized collection systems over the years. Adhering to the concepts of safety, reliability, and compliance, it has gained the favor of the market. Laboratories of pharmaceutical companies such as Eli Lilly, Novartis, Pfizer, Hequan Pharmaceutical, Huahai Pharmaceutical, Bayer Pharmaceuticals, and many other clients in various fields are using these products to protect the health of laboratory users and improve the environment, while also contributing to the establishment of laboratory safety culture and cost reduction.

Regulatory requirements: According to the national standard GB18597-2013 Pollution Control Standards for Hazardous Waste Storage, it is stipulated that containers containing hazardous waste must be labeled with labels that comply with Appendix A of this standard; 6.2.2 There must be a leakage liquid collection device, a gas outlet, and a gas purification device. It can be seen that the commonly used open or semi open reagent bottles and waste collection containers in the laboratory, as well as unclear labeling of reagents and waste liquids, do not meet the requirements of national standards and regulations. Their volatile and diffused chemical odors can cause cumulative harm to the environment and personnel health.

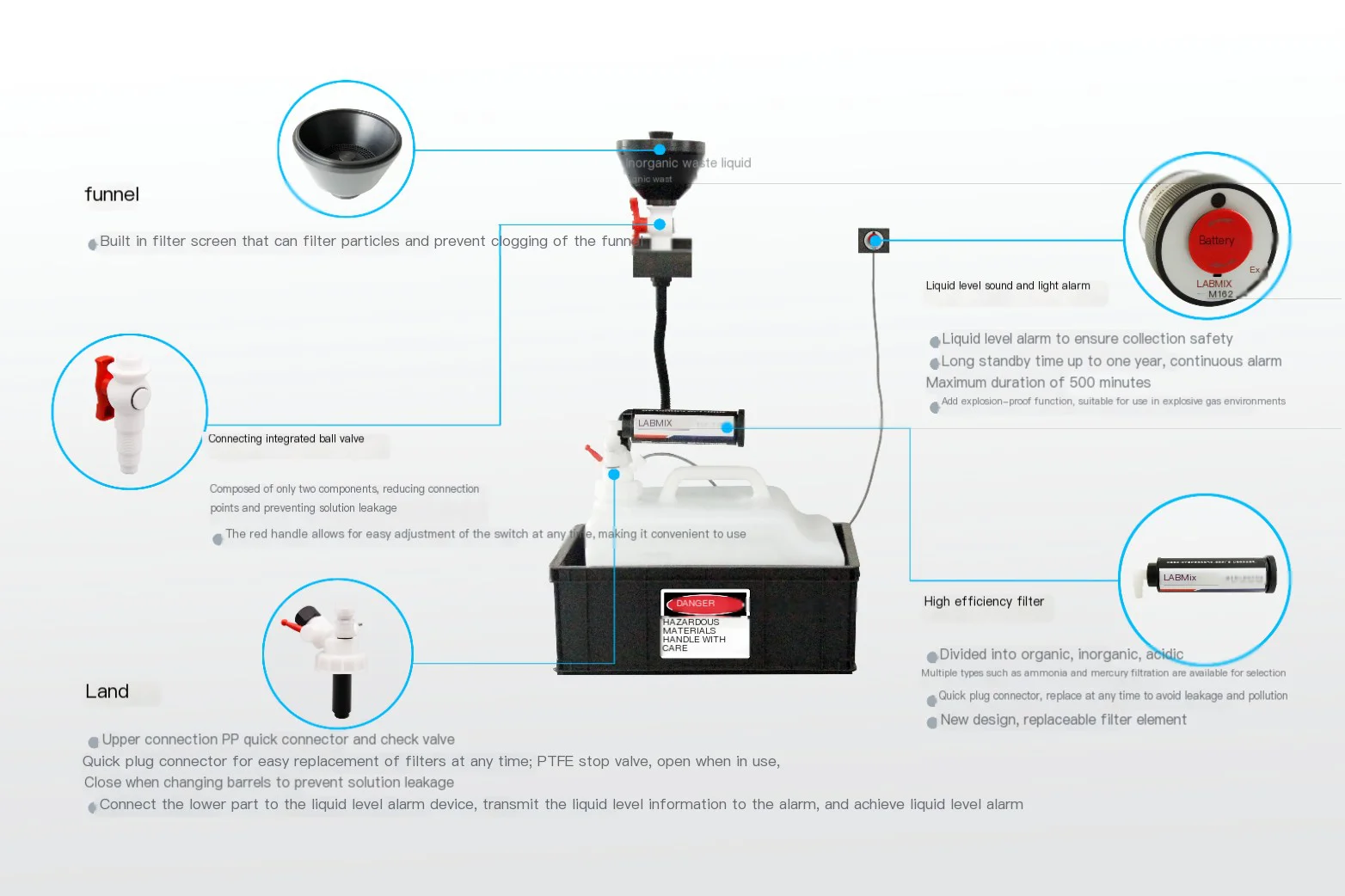

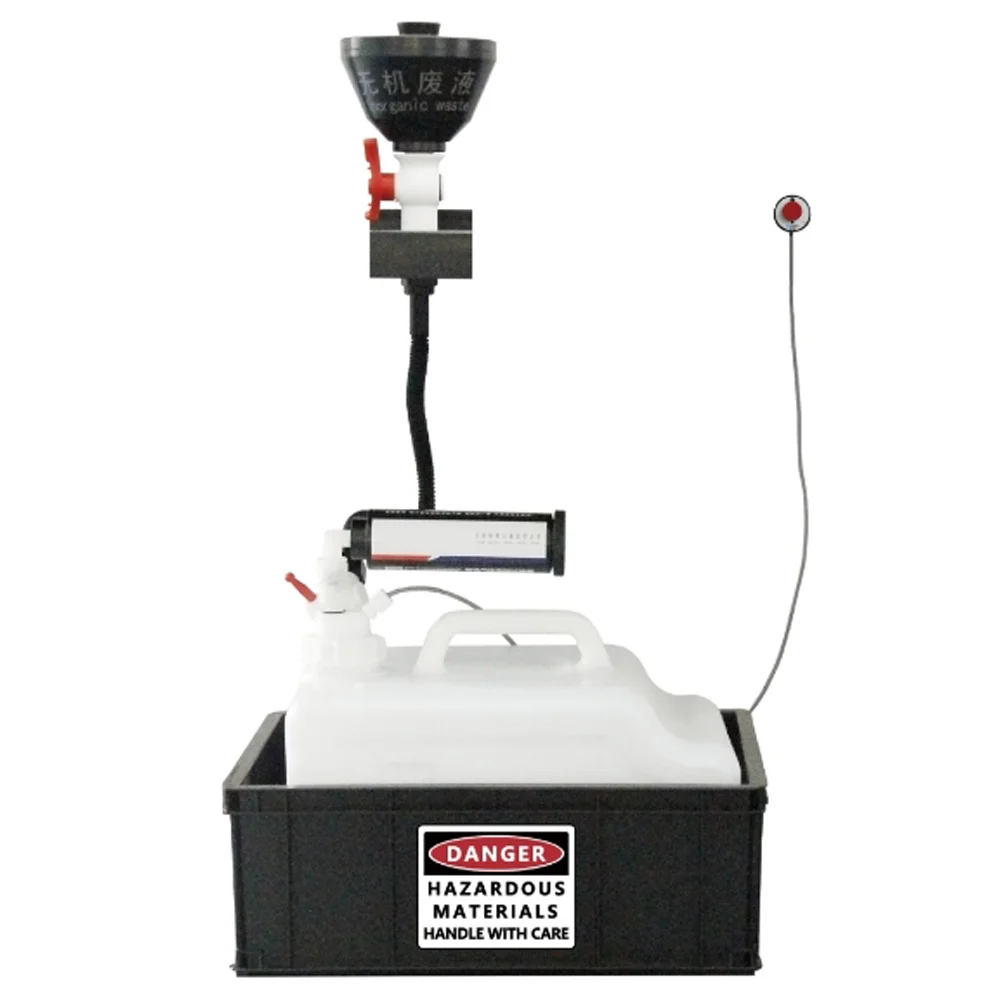

Introduction to WISE LAB tilting safety collection system

1. The collection container is made of HDPE material, which meets the technical specifications for collecting laboratory waste chemicals in GB31190-2014, and is labeled with compliance labels. The container is designed for safe collection of waste liquid with a capacity of 10L/20L, with a height not exceeding 35cm, suitable for lower space heights, and can choose a conductive material waste liquid tank;

2. Pouring funnel made of HDPE material, with a diameter of 150mm and a wall thickness of 10mm, equipped with a funnel sealing cover and splash proof filter screen; Optional conductive funnel with a diameter of 160mm.

3. The funnel can be installed on the tabletop or embedded in the tabletop, with a tabletop opening of either 30mm or 130mm;

4. The PTFE material check valve can be installed on the table or under the table to ensure reliable sealing during storage;

5. PTFE material guide corrugated pipe, connected to the pouring funnel and collection container, adopts cold expansion connection, reliable sealing, does not use sealing rings and rubber pads, corrosion-resistant and anti-aging;

6. Equipped with a signal line safety cover, a quick plug with a safety lock buckle, a liquid level sensor, and PTFE corrugated pipe connection components, explosion-proof certification;

7. The high-efficiency filter adopts a quick plug connection, which is convenient for replacement and ensures that the chemical components in the container will not evaporate into the environment during the replacement process. The filter adopts international standard classification, and currently there are 5 types to choose from, namely organic gas high-efficiency filter, inorganic gas high-efficiency filter, acidic gas high-efficiency filter, ammonia and methylamine filter, and multi-purpose high-efficiency filter;

8. The high-efficiency filter is equipped with a 6-month visual time tag, indicating the next replacement time, and has a third-party testing report;

9. The collection container is equipped with a PP material leak proof secondary container, which has electrostatic conductivity and complies with international regulations that exceed 110% of the waste liquid collection container. A mobile stainless steel carrying vehicle is optional, and the secondary container can be equipped with anti dumping function;

10. The collection end safety cover is equipped with a contactless liquid level sound and light alarm;

11. Equipped with a liquid level alarm intelligent control panel, powered by a 3V button battery, no external power supply required, providing sound and light alarm function for liquid level, with explosion-proof certification;

12. The tilting safety collection system has obtained CE safety certification, explosion-proof certification, and obtained SGS air tightness testing report;

13. Customized services. Customization can be made according to the customer’s container lid, and the pipeline design can be customized according to the actual needs of the instrument and the customer’s design plan, maximizing the utilization rate of the device.

Inverted table interior configuration description:

Includes one high-density polyethylene liquid collection container, two lids (one lid is designed with a connecting plate for the drainage pipe, and the other is a regular lid for the container bucket safety cover), one set of funnels with lids and splash proof filter screens, one PTFE stop valve, one set of filter quick plugs, one inorganic or organic high-efficiency filter, one set of explosion-proof liquid level sound and light alarm, one anti leakage secondary container, and one set of cold expansion PTFE corrugated pipe drainage device

Container bucket capacity	material	Container size (L * W * H) mm	Bucket color	Bucket lid specifications	Outer diameter of funnel (mm)	Funnel volume (ml)	Table opening size (mm)	PTFE stop valve	Item number: Efficient Organic Filter	Item number: High efficiency inorganic filter
10L	HD- PE	230*195*310	transparent	S60	150	600	Φ30	on the table	L302BD-1003001	L302BD-1003002
10L		350*255*255		S66					L302BD-1003001S	L302BD-1003002S
20L		272*272*400							L302BD-2003001	L302BD-2003002
10L		230*195*310	transparent	S60				Under the table	L302BD-1003011	L302BD-1003012
10L		350*255*255		S66					L302BD-1003011S	L302BD-1003012S
20L		272*272*400							L302BD-2003011	L302BD-2003012
20L		400*270*300							L302BD-2003011S	L302BD-2003012S
10L		230*195*310		S60			Φ130		L302BD-1013011	L302BD-1013012
10L		350*255*255		S66					L302BD-1013011S	L302BD-1013012S
20L		272*272*400							L302BD-2013011	L302BD-2013012
20L		400*270*300							L302BD-2013011A	L302BD-2013012A

Example of customer installation of tilting table type (2 options for table installation):

1 Installation on the funnel table

Table opening with a diameter of 30mm, installed on the funnel and stop valve table or on the funnel table, and installed under the stop valve table

2 Installation of funnel embedded in tabletop

Table opening with a diameter of 130mm, embedded installation on the funnel table, and installation under the stop valve table

3. The alarm is installed on the fume hood column or lower cabinet position, and the installation hole for the alarm is Φ 40mm

WISE LAB Safety Collection Device Compliance Identification:

Complies with: Classification and labeling of commonly used hazardous chemicals (GB13690), technical specifications for collecting laboratory waste chemicals（GB31190）

Compliance verification:

-Reference standard GB/T31190-2014 Technical specification for collection of laboratory waste chemicals

– QR code security content management;

1 Chemical Storage Compatibility Table

2 Requirements for collection and storage of laboratory waste chemicals

3 Common laboratory waste chemical collection and storage requirements

4 Classification table of waste chemicals generated during the experimental process

– Multiple security labels;
