The cumulative time of the filter screen is calculated based on the cumulative start time of the fan.  Fan current: according to third-party customer standards Lighting current: according to third-party customer standards Sterilization current: according to third-party customer standards

Pre use inspection

Interface

1.1 After power on, the system initializes and displays a waiting interface. Click “login” to enter the main interface.

1.2 Main interface

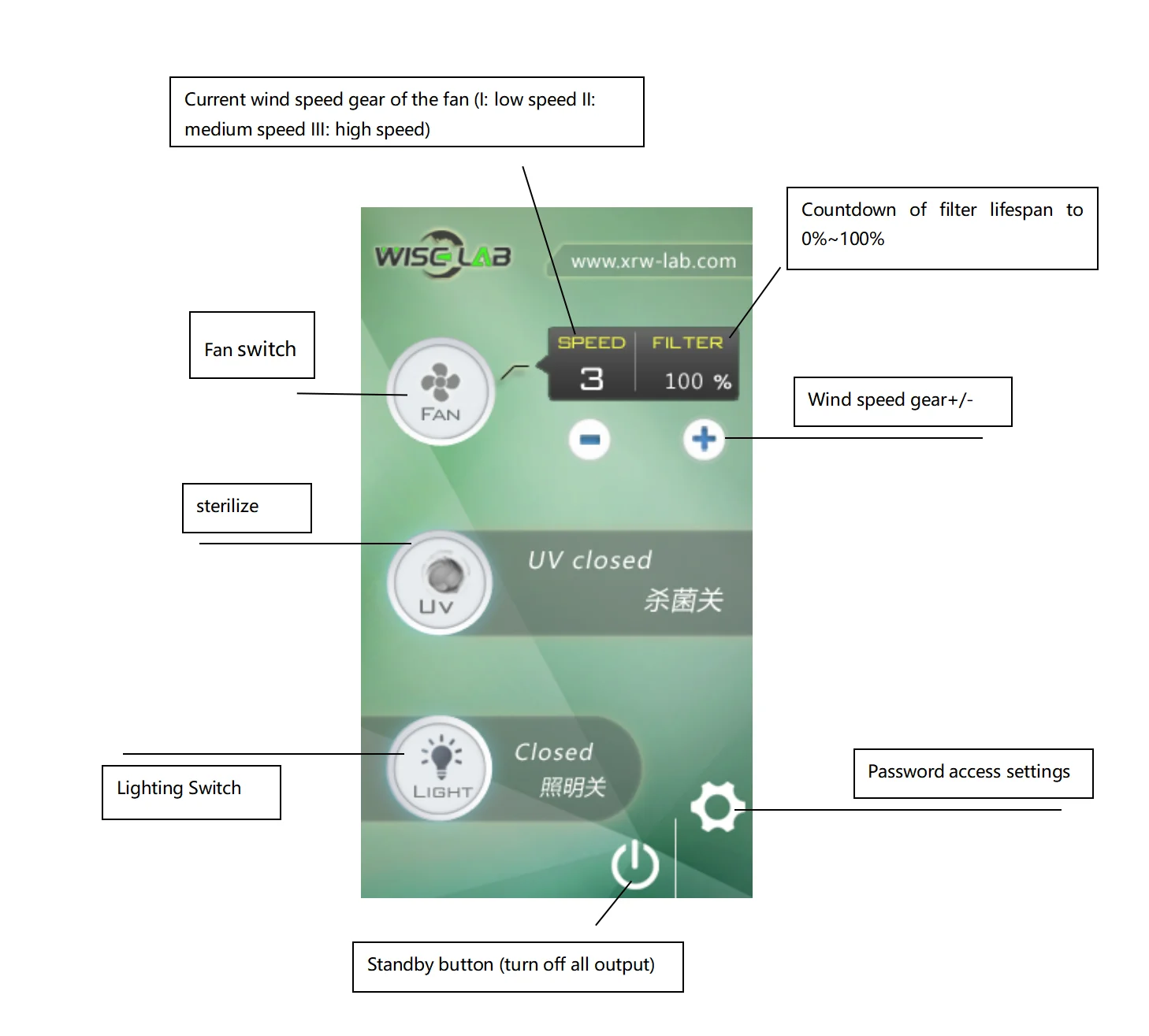

2 Function Introduction

2.1 Fan switch: Control the fan to switch on and off according to the current set wind speed gear.

2.2 Fan gear SPEED: 1-6 gears, a total of 6 gears, automatically saved after changing the gear.

2.3 Lighting switch: controls the on and off of lighting.

2.4 Sterilization switch: controls the opening and closing of UV sterilization.

2.5 Setting of filter lifespan

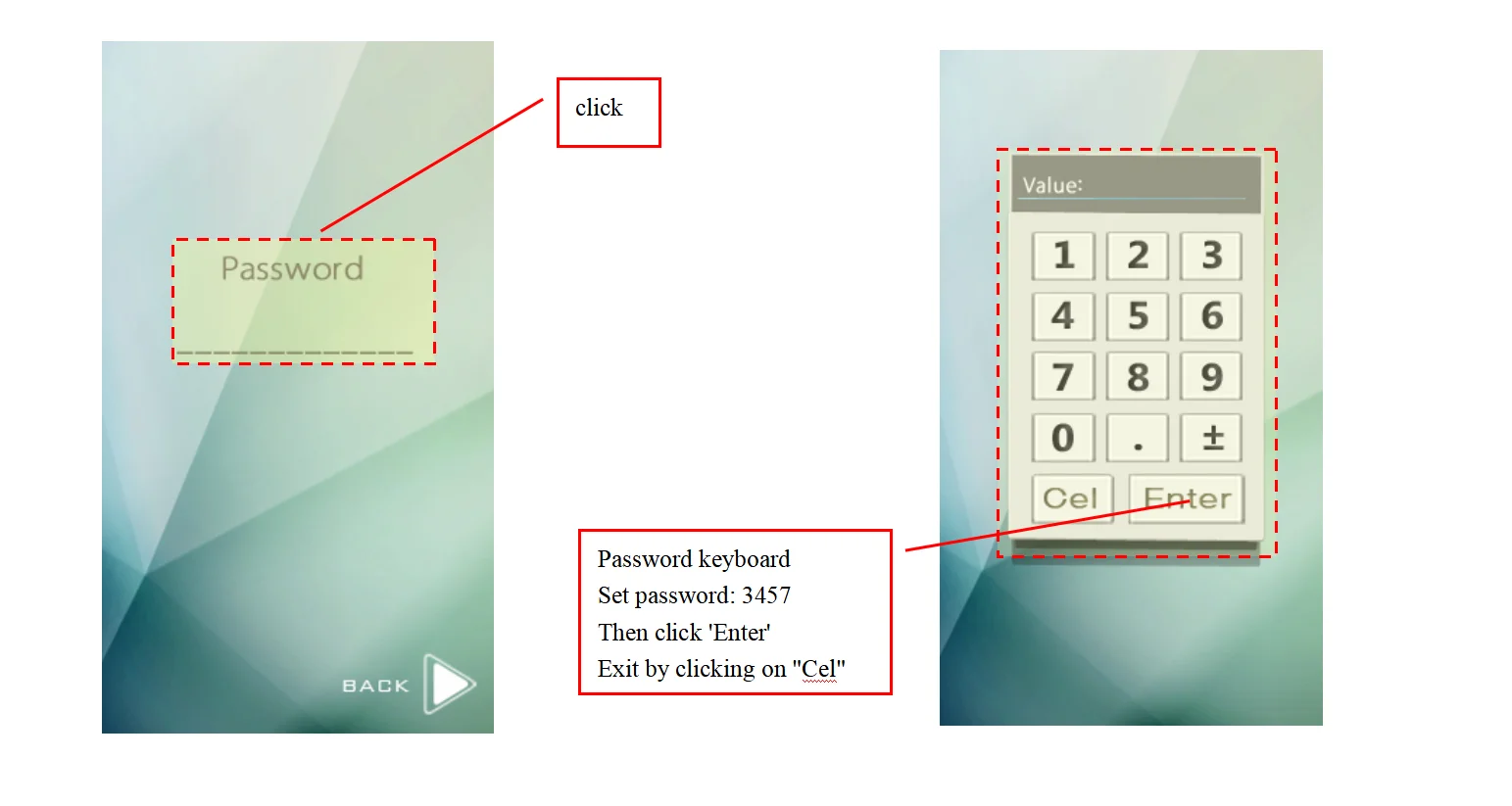

Click on the main interface to display the following image. Click on the red dashed box area of password to pop up the password keyboard.

Enter: 3457, then click “Enter”. You can enter the settings interface.

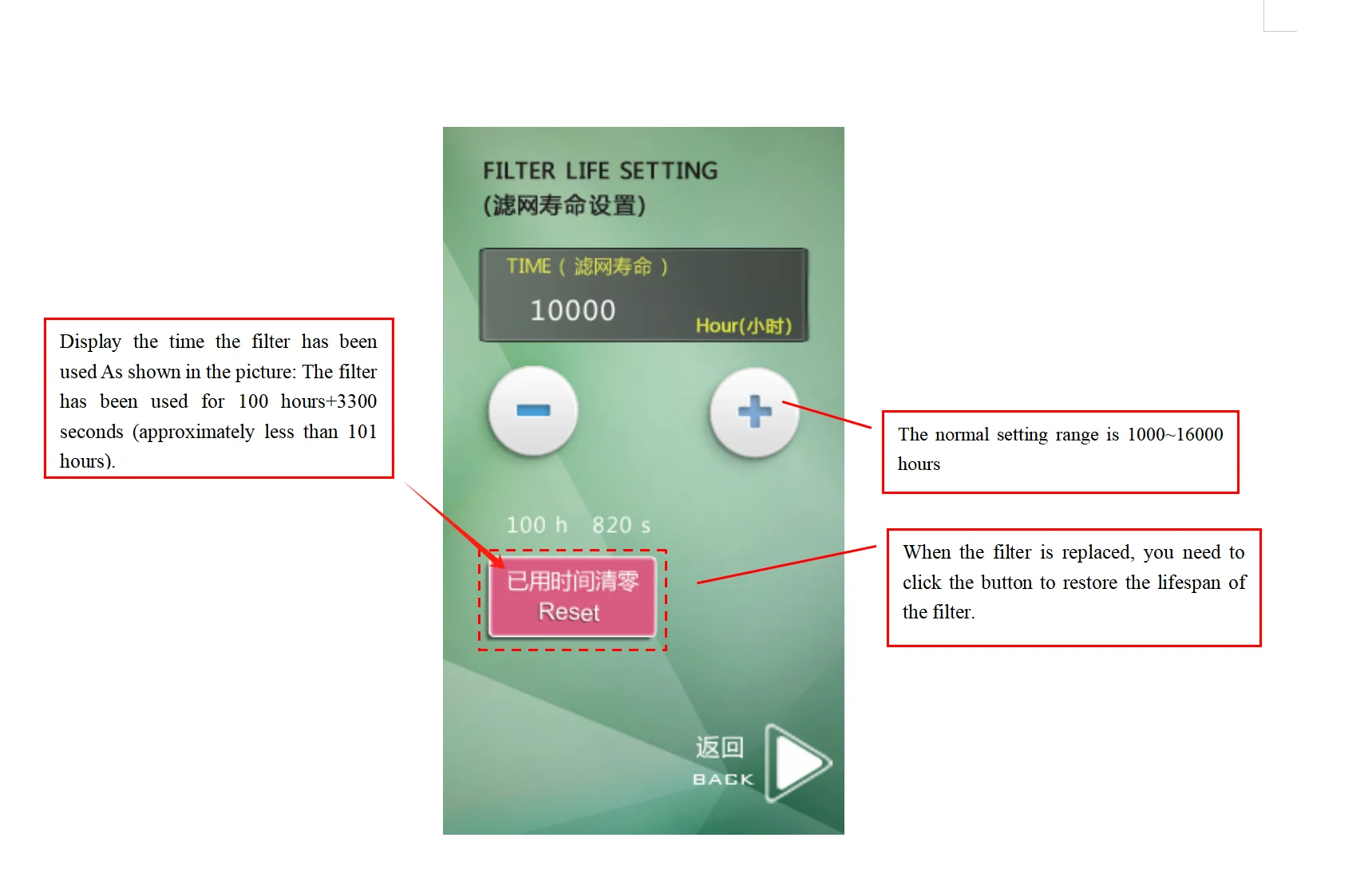

Enter the interface and click on “-” and “+” to set the lifespan of the filter. Setting range: 1000~16000 (H) hours. After setting up, click the “BACK” button to save and exit the system



Attention: The timing of the filter screen is accumulated based on the running time of the fan.

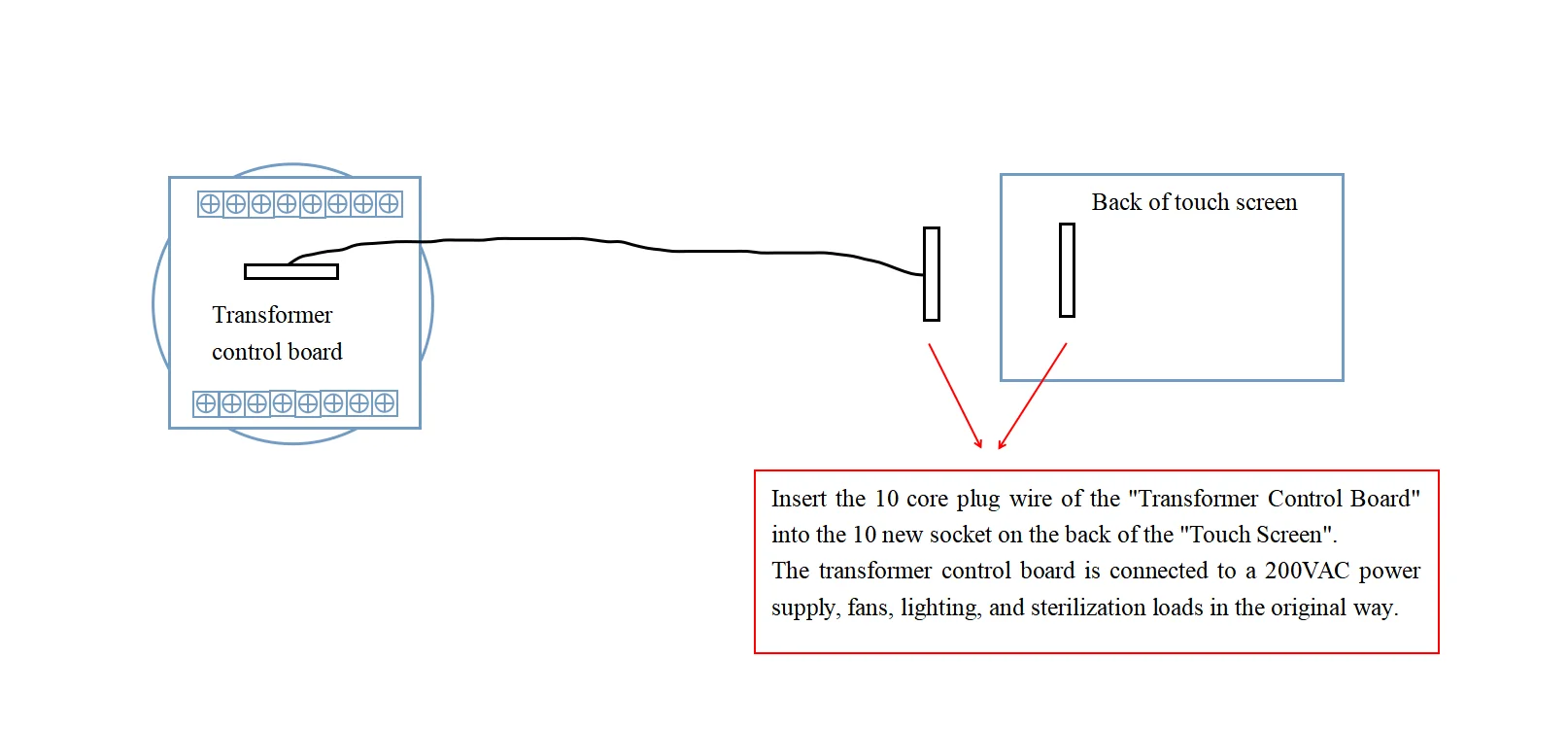

3 Wiring diagram

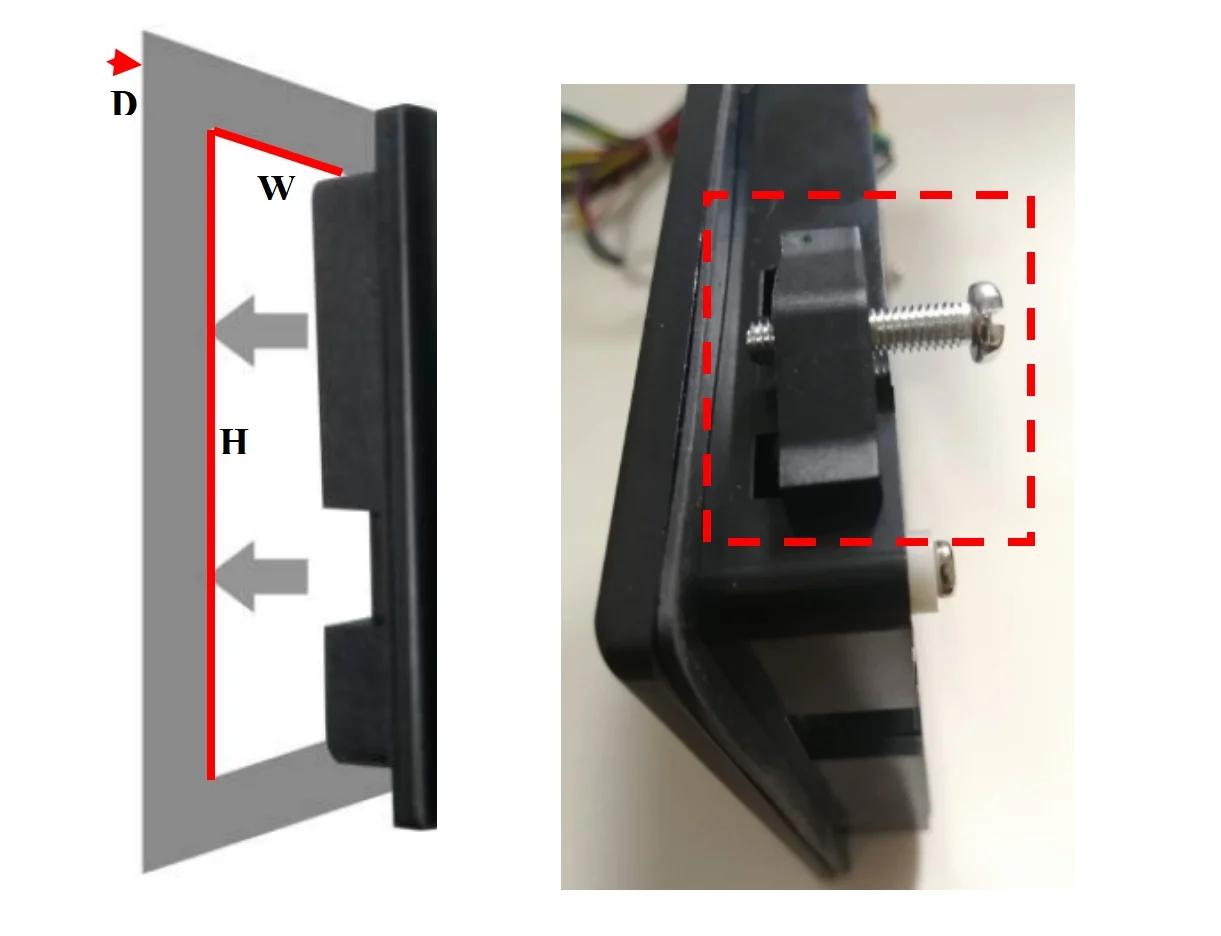

4. The fixed opening size of the touch screen is W * H=87.7 * 130mm, with a safe depth greater than 50mm

Method 1: Insert the touch screen into the fixed opening of the box, and then use the fixing ears in the attachment to place it in the four installation positions of the touch screen. Tighten the screws of the four support ears from the rear of the box.

Method 2: Without using ear support, apply adhesive to fix the touch screen. Apply the adhesive around the back of the touch screen, then firmly insert the touch screen into the fixed opening of the box and wait for it to set.

Standard configuration

◎ LCD display control

◎ EBM fan

◎ High efficiency filter

◎ LED lighting fixtures

Stainless steel tabletop

◎ Universal casters

Optional configuration:

◎ Wind speed sensor

◎ Automatic adjustment PLC control system

Collection of dust particles and planktonic bacteria

◎ Differential pressure gauge

Technical Parameter

◎ Cleanliness level: Class A (compliant with GMP)

◎ Filtration efficiency: H14 (99.995%) initial high efficiency secondary filtration

◎ Wind speed: 0.36-0.54m/s

Leakage rate: 0.01%

◎ Noise: ≤ 65dB

◎ Illumination: ≥ 300LUX

◎ Overall material: countertop SUS304

◎ Power supply: 220V

application

Widely used in various industrial sectors and scientific experimental sites such as electronics, optoelectronics, precision instruments, meters, new energy, photovoltaics, pharmaceuticals, healthcare, microbiology, agricultural seed cultivation research, food processing, etc.

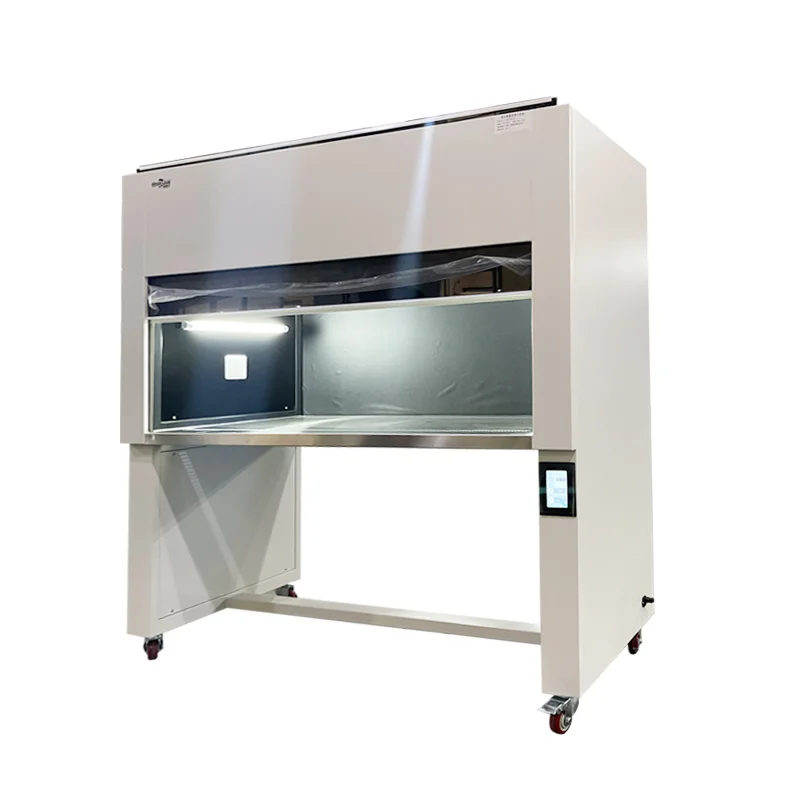

Product Name: Ultra Clean Workbench – Vertical Flow
model	WL-CJ-09A	WL-CJ-12A	WL-CJ-15F	WL-CJ-18F
serial number	1563-024-00X
External dimensions	(W)900* (D)700* (H)1650mm	(W)1200* (D)700* (H)1650mm	(W)1500* (D)700* (H)1650mm	(W)1800* (D)700* (H)1650mm
Operation Space	(W)700* (D)670* (H)600mm	(W)1000* (D)670* (H)600mm	(W)1300* (D)670* (H)600mm	(W)1600* (D)670* (H)600mm
Fluorescent lamp/sterilization lamp	20W*(1)/20W*(1)	20W*(1)/20W*(1)	40W*(1)/40W*(1)	40W*(1)/40W*(1)
Material	Steel glass/304 stainless steel
Noise	＜65dBA
Touch Screen	4.3-inch/7-inch LCD screen
Lighting	Economical LED light/600 LUX
Voltage	110/220V ,50/60HZ
Purification level	Level 100 (Federal 209E)
Filter	U14 high-efficiency filter, filtration efficiency 99.995%/G4-G5 primary filter
Fan	German EBM fan
Wind speed display	Wind speed sensor (optional)
Vav system	Automatic adjustment PLC control system (optional)
Differential pressure gauge	Differential pressure gauge (optional)
Particle collection	Dust particles and planktonic bacteria collection (optional)
Manufacturer	KSXRW.CO.，LTD
Country of manufacture	MADE IN CHINA
Is it customizable	YES
