| Overview: This device requires a Class 1000 laboratory environment and can achieve a Class 10 cleanliness level. Filter common element contamination such as B, Si, K, Ca, etc.
Product Scope: For use in trace element analysis laboratories (specifically for ICP-MS inductively coupled plasma mass spectrometry). Layout: It is recommended to reserve a maintenance channel at the back of the equipment, approximately 500-600mm. |
 |

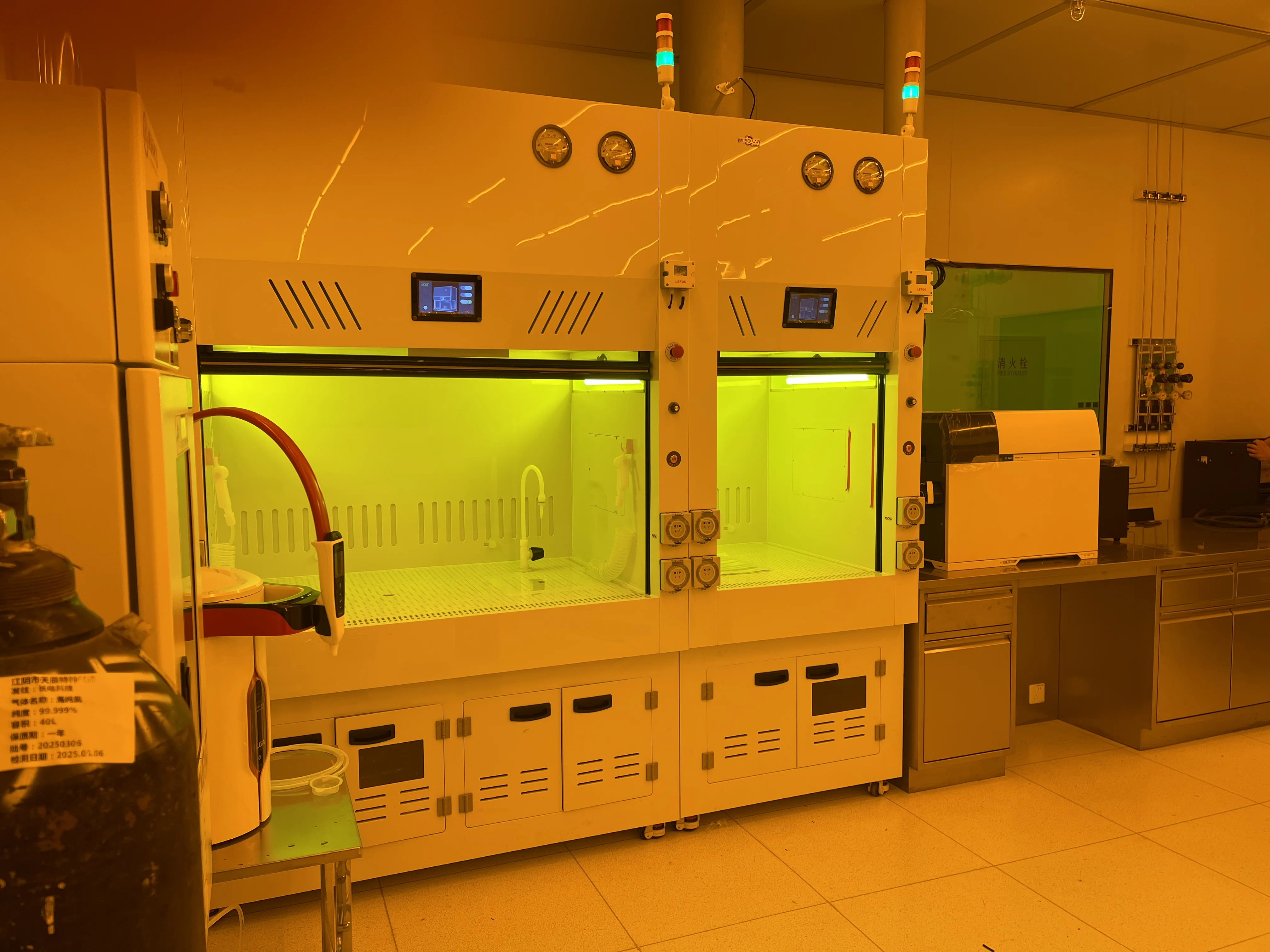

Specification for clean room sampling cabinets used in conjunction with ICP-MS
| 1 | Grade 100 chemical ultra clean cabinet | 1500*1000* 2350mmClass100 |
tower | 1.00 | Exhaust volume 1800 cubic meters per hour |
| 2 | Class 100 ultra clean injection machine | 900*1000* 2350mmClass100 |
tower | 1.00 | Exhaust volume of 1000 cubic meters per hour |
1、 Grade 100 chemical ultra clean cabinet
▲ (1) Size 1500 * 1000 * 2300 ± 5mm.
▲ (2) The Class 100 chemical ultra clean cabinet is a GB 50073 Class 5 negative pressure (-5Pa) ultra clean cabinet made of PP (polypropylene) material, which can withstand strong acids and alkalis. It is equipped with a single PVDF faucet, PP tank, and optional gas cock inside the cabinet.
▲ (3) To meet the requirements of GB50073 air cleanliness level 4, a leakage test must be conducted before leaving the factory, using American AAF or U15 grade PTFE filter cartridges of the same level. The number of particles with a measured particle size of 0.3~0.5 microns should not exceed 1 particle/m ³.

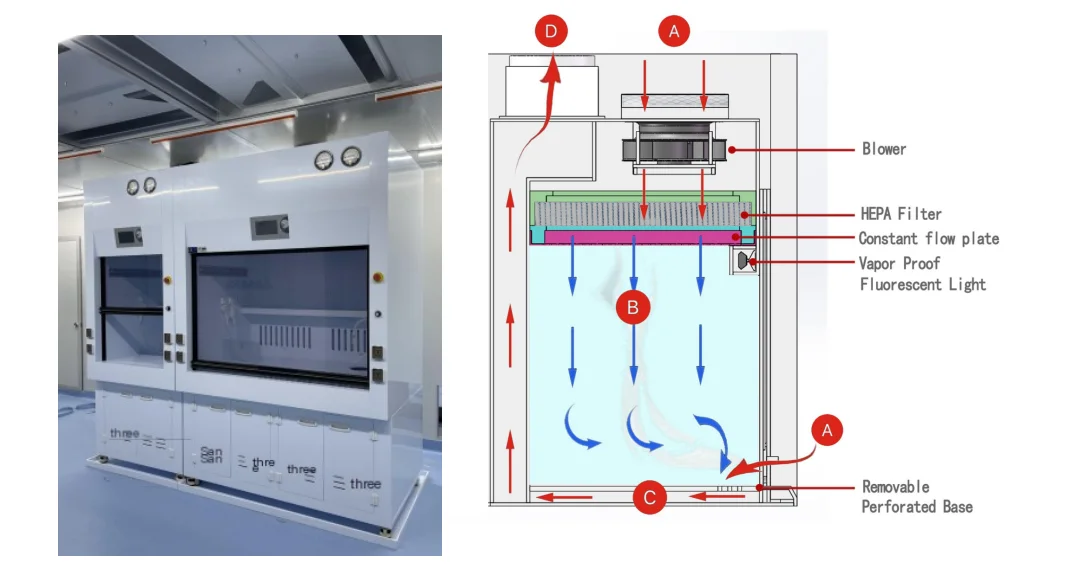

▲ (4) Equipped with a unique air curtain to ensure that there is no interference or influence between the inside and outside; There is a secondary flow equalization plate installed to ensure uniform cleanliness at all points inside the cabinet.
▲ (5) The inner wall connection method ensures that there are no metal parts, the entire body is made of PP material, and PEEK screws.
(6) Activity window: Made of 6mm thick South Asian PVC window, with laboratory specific warning signs attached.
(7) Window mechanical system: Made of high-quality anti-corrosion materials, ensuring that the window can stay in any position.
(8) Independent LED lighting, the lighting system needs to be sealed and must not come into contact with the gas inside the cabinet.
(9) External power control, the power can be cut off externally in case of emergency.
▲ (10) The air supply can be independently adjusted and has an independent air valve opening display; The pressure display inside the cabinet allows the experimenters to keep track of the working status at any time.
▲ (11) The filter of the Class 100 chemical ultra clean cabinet fully considers the background pollution caused by the precipitation of boron elements, and is required to be a boron free filter. Metal ion precipitation is less than 0.01 ppb.
▲ (12) The Class 100 chemical ultra clean cabinet comes with a built-in air supply fan, and the air inside the cabinet comes from indoors to ensure that the opening of the Class 100 chemical ultra clean cabinet does not affect the indoor airflow pattern. The exhaust is connected to the ceiling exhaust duct (φ 250mm).
▲ (13) The exhaust system is a variable air volume system, which can automatically adjust the exhaust air volume according to the pressure changes inside the hundred level chemical ultra clean cabinet, ensuring stable exhaust. It is also equipped with an emergency exhaust device, which can achieve maximum exhaust with one click in case of emergency, ensuring the safety of operators.
▲ (14) Equipped with Daikin 231, PFA nitrogen gun: external high-purity nitrogen pressure of 0.8MPa; Equipped with a built-in gas tube ≥ 1.5 meters; PP/PVDF/PTFE sink (optional), with a single port PVDF faucet inside the cabinet; Equipped with drainage function; Equipped with Fuma wheel and leakage tray, leakage alarm device, and three color light.
2、 Class 100 ultra clean injection machine
▲(1) Size 900 (width) * 1000 * 2300 ± 5mm.
▲ (2) The Class 100 ultra clean injection machine is a GB 50073 Class 5 air cleanliness negative pressure (-5Pa) ultra clean cabinet made of PP (polypropylene) material and capable of withstanding strong acids and alkalis.
▲ (3) To meet the requirements of GB50073 air cleanliness level 4, a leakage test must be conducted before leaving the factory, using American AAF or U15 grade PTFE filter cartridges of the same level. The number of particles with a measured particle size of 0.3~0.5 microns should not exceed 1 particle/m ³.
▲ (4) Equipped with a unique air curtain to ensure that there is no interference or influence between the inside and outside; There is a secondary flow equalization plate installed to ensure uniform cleanliness at all points inside the cabinet.
▲ (5) The inner wall connection method ensures that there are no metal parts, the entire body is made of PP material, and PEEK screws.
▲(6) Activity window: Made of 6mm thick South Asian PVC window, with laboratory specific warning signs attached.
▲(7) Window mechanical system: Made of high-quality anti-corrosion materials, ensuring that the window can stay in any position.
▲(8) Independent LED lighting, the lighting system needs to be sealed and must not come into contact with the gas inside the cabinet.
▲(9) External power control, the power can be cut off externally in case of emergency.
▲ (10) The air supply can be independently adjusted and has an independent air valve opening display; The pressure display inside the cabinet allows the experimenters to keep track of the working status at any time.
▲ (11) The filter of the hundred level ultra clean injection machine fully considers the background pollution caused by the precipitation of boron elements, and is required to be a boron free filter. Metal ion precipitation is less than 0.01 ppb.
▲ (12) The hundred level ultra clean sampling machine comes with a built-in air supply fan, and the air supply inside the cabinet comes from indoors to ensure that the opening of the hundred level ultra clean sampling machine does not affect the indoor airflow pattern. The exhaust is connected to the ceiling exhaust duct (φ 250mm).
▲ (13) The exhaust system is a variable air volume system, which can automatically adjust the exhaust air volume according to the pressure changes inside the hundred level ultra clean sampling machine, ensuring stable exhaust. It is also equipped with an emergency exhaust device, which can achieve maximum exhaust with one click in case of emergency, ensuring the safety of operators.
▲ Equipped with Fuma wheel and leakage tray, leakage alarm device, and three color light.
Comprehensive requirements:
1. The high-efficiency filter adopts a PTFE material high-efficiency filter with a plastic partition. A scanned copy of the testing report for the high-efficiency filter (including a hundred level chemical ultra clean cabinet and sampling station) should be provided (before project acceptance, a valid copy of the testing report with the “CMA” or “CNAS” logo issued by a third-party testing agency should be provided as one of the acceptance criteria)
2、The hundred level chemical ultra clean cabinet and sampling station can meet the requirements of air cleanliness level 4 in GB50073, using U15 level PTFE filter element, and must be separately inspected after delivery.
3. The hundred level chemical ultra clean cabinet in the pre-processing area is equipped with a pre installed pure water pipe channel. After the installation of the pure water system equipment, PFA pipes are used to direct pure water into the ultra clean table, and corresponding valves are set up. The valve material is one of PFA/PVDF/PTFE
