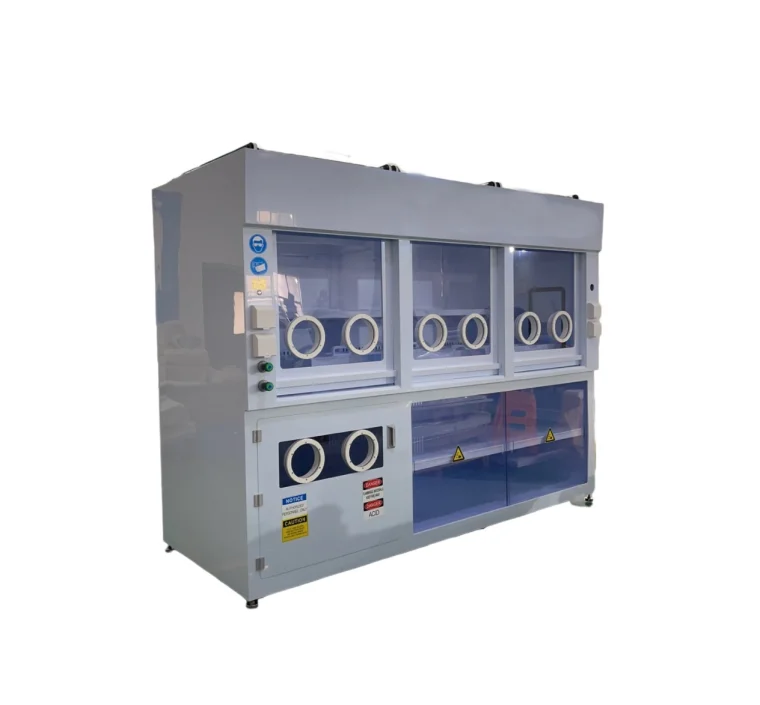

| The chemical cleaning cabinet designed specifically for hydrofluoric acid and concentrated nitrifying acids overcomes the defects of traditional fume hoods, such as rusting, yellowing, and cracking, in high-temperature concentrated acid environments, and has acid and alkali resistance. Suitable for various laboratories: pharmaceutical laboratory, food laboratory
Semiconductor laboratory, chemical laboratory, etc |
 |
Core advantages:
Electrical appliances have been CE certified
● FFU can be added to meet the requirements of a Class 100 environment
● Built in EBM fan
Excellent exterior design
● Wind speed display
Excellent pollution control performance can be achieved with an energy-saving low wind speed of 0.3m/s
● Efficient and energy-saving
Structure Design
● Two section design, easy to disassemble and move.
The tabletop is an orifice plate with a double-layer design
● Window limit alarm can be added (optional).
The cabinet lighting is pre powered. The lighting equipment is electronic ballast, energy-saving and economical LED lights. Under environmental conditions of 0 ℃, the standard illuminance of the working surface is greater than 800Lux.
Safety protection
There are maintenance windows on both sides of the fume hood.
Limit the movement of the front window beyond 457 millimeters to ensure that users can operate in a safe position (optional).
● An anti slip design for the front window frame can be added to prevent the ventilation hood window from slipping and injuring the hands of workers.
The door frame slides and has stepless positioning, allowing laboratory administrators or safety officers to operate freely.
The door frame can be equipped with a limit alarm (optional).
VAV variable air volume system (optional).
PFA/PVDF material air gun water gun.
PFA/PVDF material pure faucet.
Easy maintenance
The inner chamber workbench is easy to clean.
The detachable gas collection hood system can achieve cleaning and maintenance of the interior of the cabinet.
The hinged door frame system requires minimal maintenance.
Defects liability period
The shelf life of the chemical cleaning cabinet is 1 year, excluding consumable parts.
For specific warranty, please contact: 0512-57561563
Security testing
Each chemical cleaning cabinet undergoes leakage and circulation testing before leaving the factory to ensure compliance with ASHRAE 110:1995 standards.
| Product Name: Chemical Cleaning Cabinet | ||||
| Model | WL-PP90CIA | WL-PP120CIA | WL-PP150CIA | WL-PP1800CIA |
| Serial number | 1563-024-00X | |||
| Dimensions | (W) 900*
(D) 850* (H) 2275mm |
(W) 1200*
(D) 850* (H) 2275mm |
(W) 1500*
(D) 850* (H) 2275mm |
(W)1800*
(D)850* (H)2275mm |
| Operation space | (W)770*
(D)600* (H)900mm |
(W)1070*
(D)600* (H)900mm |
(W)1270*
(D)600* (H)900mm |
(W)1570*
(D)600* (H)900mm |
| Material | PP/PVC | |||
| Noise | ＜60dBA | |||
| Control System | 4.3-inch/7-inch LCD | |||
| Lighting | Economical LED lamp/800 LUX | |||
| Voltage | 110/220V, 50/60HZ | |||
| Filter | PTFE material U15 high efficiency filter, filtration efficiency 99.9995% /G4-G5 primary filter | |||
| Fan | German EBM fan | |||
| Wind speed display | Wind speed sensor | |||
| VAV system | VAV air volume control system (optional) | |||
| Water gun | PP/PFA/PVDF (optional) | |||
| Air gun | PP/PFA/PVDF (optional) | |||
| Sink | PP/PFA/PVDF (optional) | |||
| Faucet | PP/PFA/PVDF (optional) | |||
| Frame | SUS 201/304 frame (optional) | |||
| Electric air valve | φ160mm/φ250mm/φ315mm | |||
| Manufacturer | KSXRW.CO.，LTD | |||
| Manufacturer | MADE IN CHINA | |||
| Is it customizable | YES | |||
